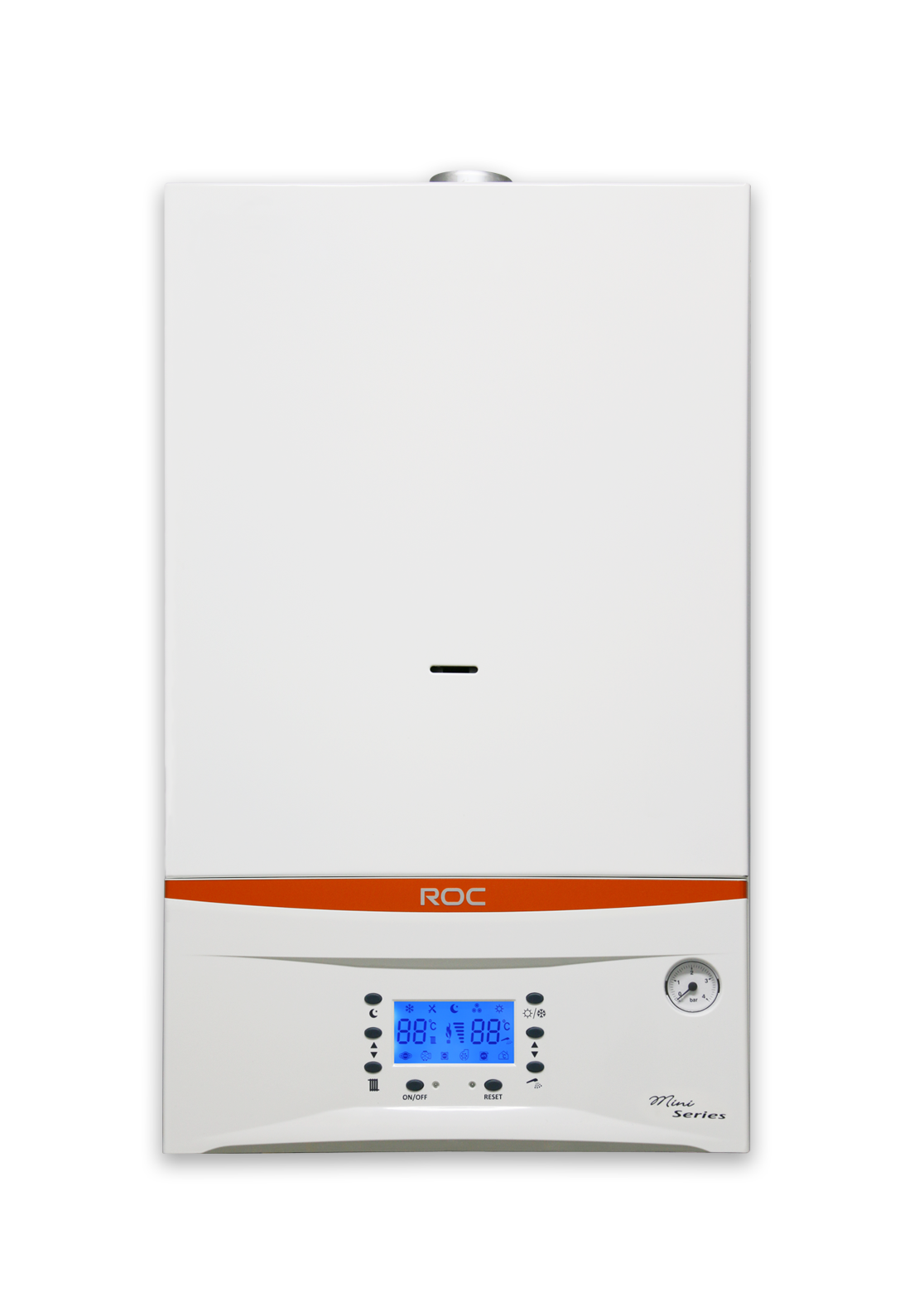

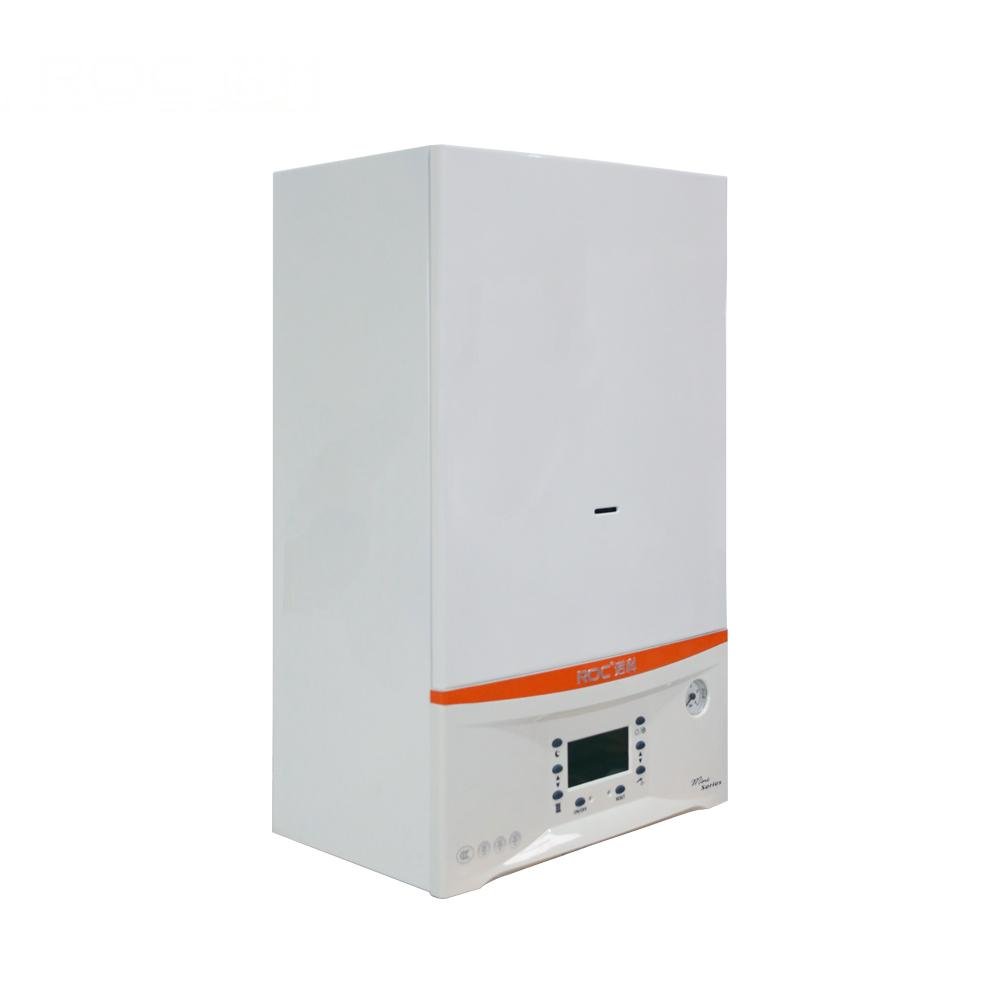

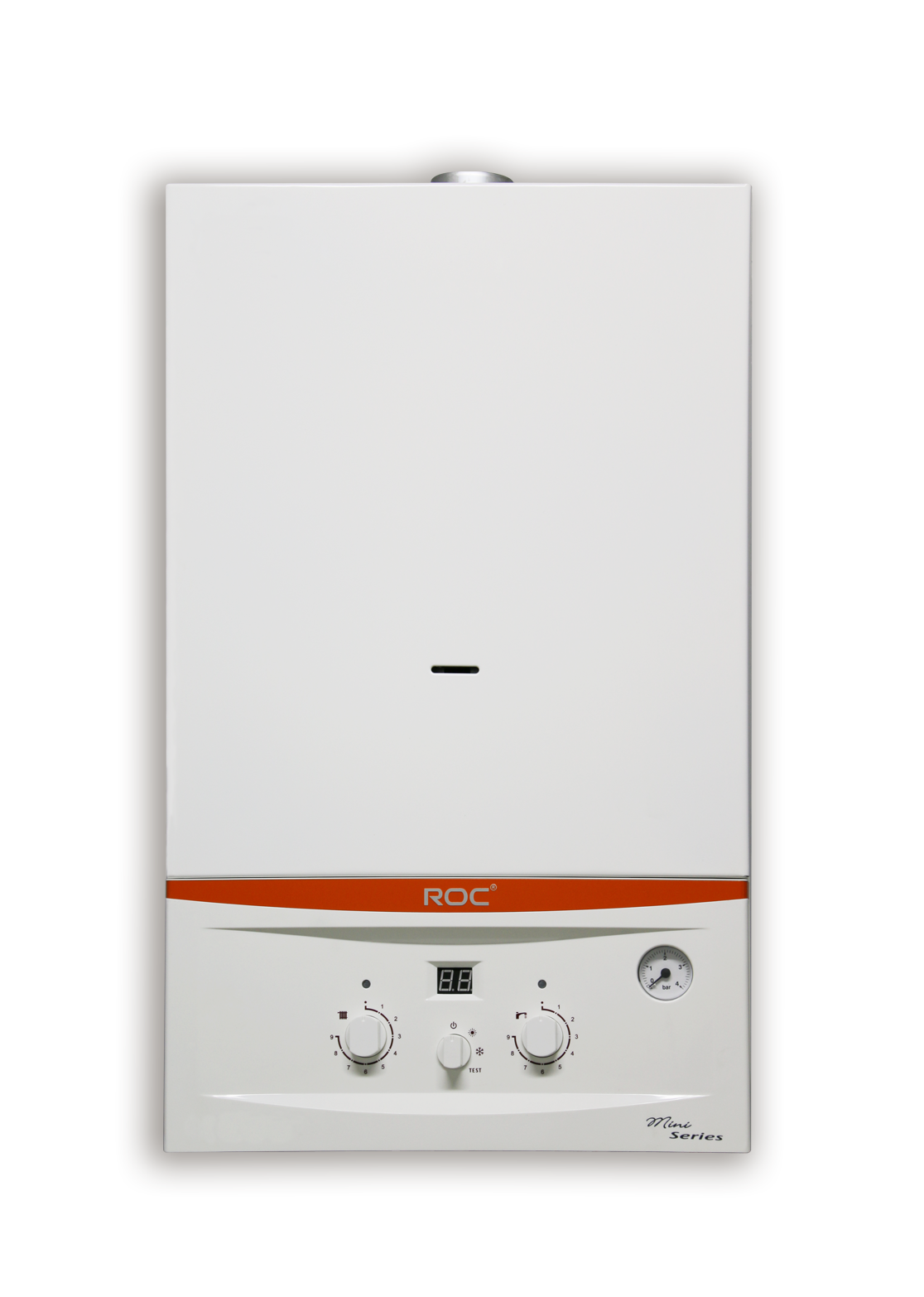

The mini gas-fired heating water heater is designed for small-sized apartments and compact installation scenarios. The body is compact and flexible, and it has the dual capabilities of efficient heating and providing domestic hot water. Multiple safety protections and an intelligent temperature control system make home life more reassuring and comfortable.
Core value highlights：
Installation friendly design highlights：
| Unit | L1PB12-X6 | L1PB16-X6 | L1PB20-X6 | L1PB26-X6 | |
|---|---|---|---|---|---|
| Power | |||||
| Max heating rated heat load | KW | 12.2 | 16.7 | 20 | 26.4 |
| Min heating rated heat load | KW | 3.7 | 5 | 7 | 9.2 |
| Max heating rated heat output | KW | 11 | 15 | 18 | 23.6 |
| Min heating rated heat output | KW | 3.2 | 4.4 | 6 | 7.6 |
| Domestic hot water rated heat load | KW | 12.2 | 16.7 | 20 | 26.4 |
| Efficiency | |||||
| Energy efficiency rate | Class 2 | Class 2 | Class 2 | Class 2 | |
| Technical data | |||||
| Gas consumption of heating capacity (NG) | m3/h | 1.29 | 1.76 | 2.12 | 2.79 |
| Anti-freeze system start temperature | °C | 5 | 5 | 5 | 5 |
| Min hot water output capacity | kg/min | 2.5 | 2.5 | 2.5 | 2.5 |
| Max water pressure of heating system | MPa | 0.3 | 0.3 | 0.3 | 0.3 |
| Water pressure of domestic hot water | MPa | 0.02~0.8 | 0.02~0.8 | 0.02~0.8 | 0.02~0.8 |
| Expansion tank capacity | L | 5 | 5 | 5 | 6 |
| Preset pressure of expansion tank | MPa | 0.1 | 0.1 | 0.1 | 0.1 |
| Rated gas pressure (NG) | kPa | 2 | 2 | 2 | 2 |
| Gas pressure range (NG) | kPa | 1.5~3.0 | 1.5~3.0 | 1.5~3.0 | 1.5~3.0 |
| Performance | |||||
| Heating temperature setting range | °C | 30~80 | 30~80 | 30~80 | 30~80 |
| Domestic hot water temperature setting range | °C | 30~60 | 30~60 | 30~60 | 30~60 |
| Hot water production capacity (△tt=25K) | kg/min | 6.3 | 8.6 | 10.2 | 13.4 |
| Hot water production capacity (△t=30K) | kg/min | 5.3 | 7.2 | 8.3 | 10.8 |
| Circuit part | |||||
| Rated power capacity | W | 80/100 | 80/100 | 80/100 | 100/120 |
| Electrical power supply voltage | – | 220V~50Hz | 220V~50Hz | 220V~50Hz | 220V~50Hz |
| Electrical shock protection type | – | Class I | Class I | Class I | Class I |
| Degree Of Protection Against Humidity | – | IPX4D | IPX4D | IPX4D | IPX4D |

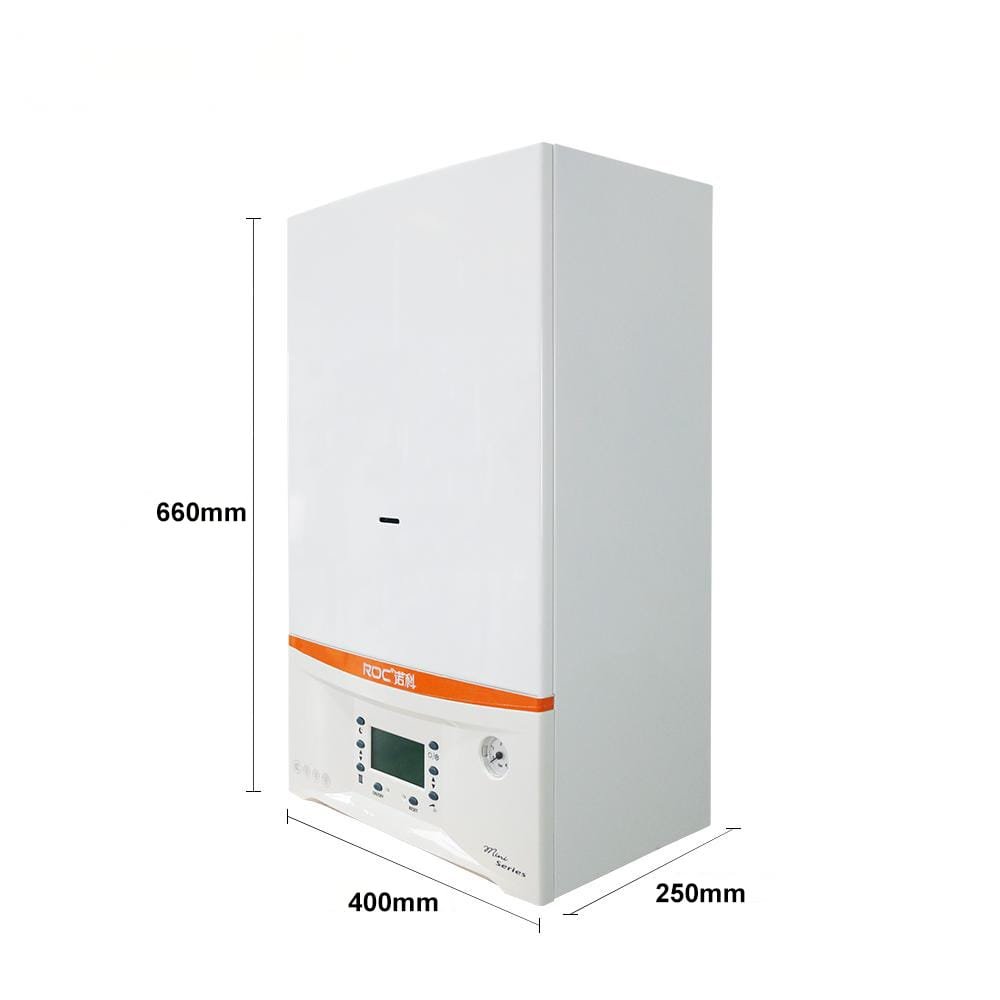

| External dimensions | mm | (L)400X(W)250X(H)660 | (L)400X(W)250X(H)660 | (L)400X(W)250X(H)660 | (L)400X(W)250X(H)660 |
Note: All above specification is for reference only, apply base on product itself.
| Support personalized customization of appearance, color, panel, logo, and more.
Minimum order quantity: ≥ Full Container Minimum Delivery time: within 90 days Provide OEM/ODM services, and the packaging method can be flexibly adjusted according to customer needs. |
 |
