CN Series

Condensing Wall Hung Gas Boiler

Full Premixed Condensing Technology, up to 107% thermal efficiency
Condensing energy saving, low-carbon and eco-friendly
Stable and efficient performance for daily heating needs
Smart control with Wi-Fi and ECO mode, easy and flexible operation

Note: Product images are for illustration purposes only. Appearance may vary by model and specification. Please refer to the actual product for details.

Overview

The CN series gas wall-hung boiler adopts full premixed condensing technology, delivering up to 107% thermal efficiency while significantly reducing gas consumption. It is designed to meet the heating and domestic hot water demands of modern households with higher energy efficiency and environmental performance.

Equipped with a high-efficiency heat exchange system, the unit ensures stable operation and improved heat transfer performance. The large color touch screen provides an intuitive user interface, making daily operation simple and convenient.

With built-in Wi-Fi remote control and intelligent heating modes such as ECO function, users can easily manage heating anytime and optimize energy usage. Combined with ISO-certified quality assurance, the CN series offers an efficient, reliable and intelligent heating solution for residential applications.

Product Features:

Full premixed condensing technology, up to 107% thermal efficiency, energy-saving and cost-effective

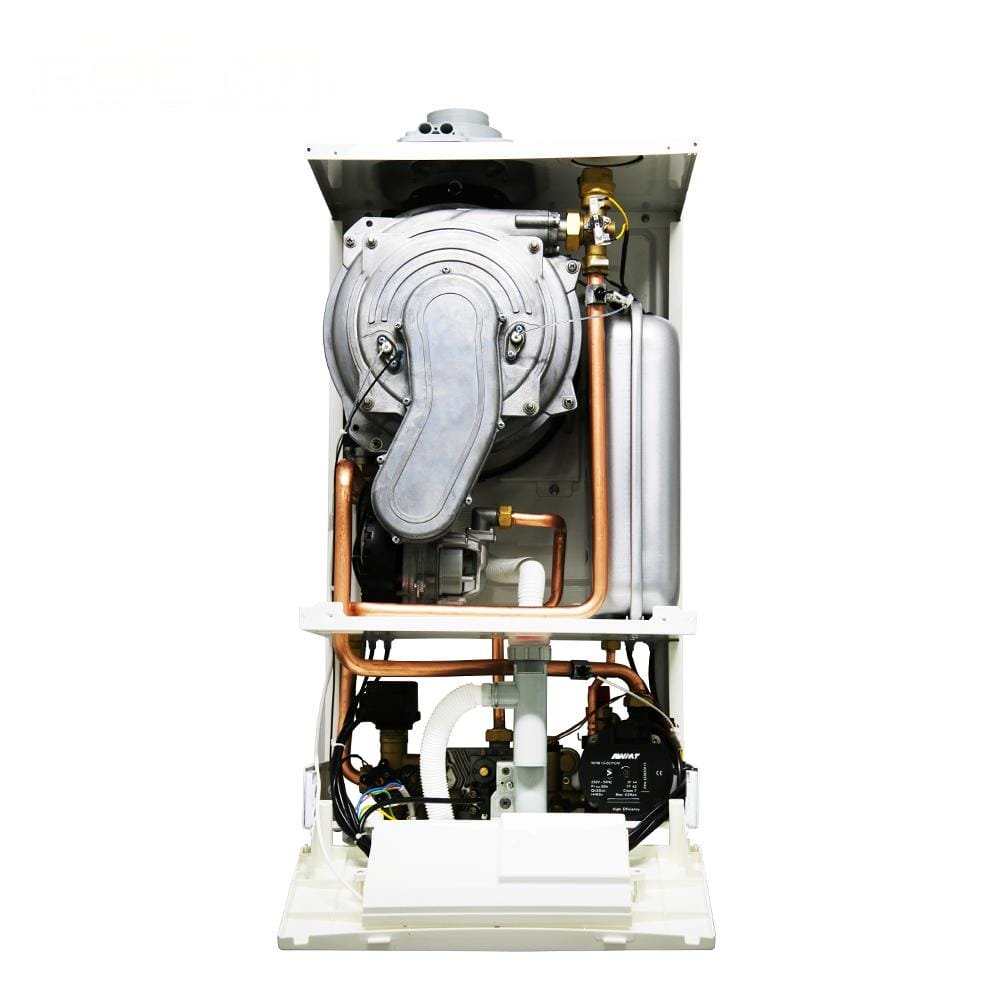

Condensing heat exchange system, improving overall heat transfer efficiency
Low NOx emission (Class 5), environmentally friendly and compliant with standards

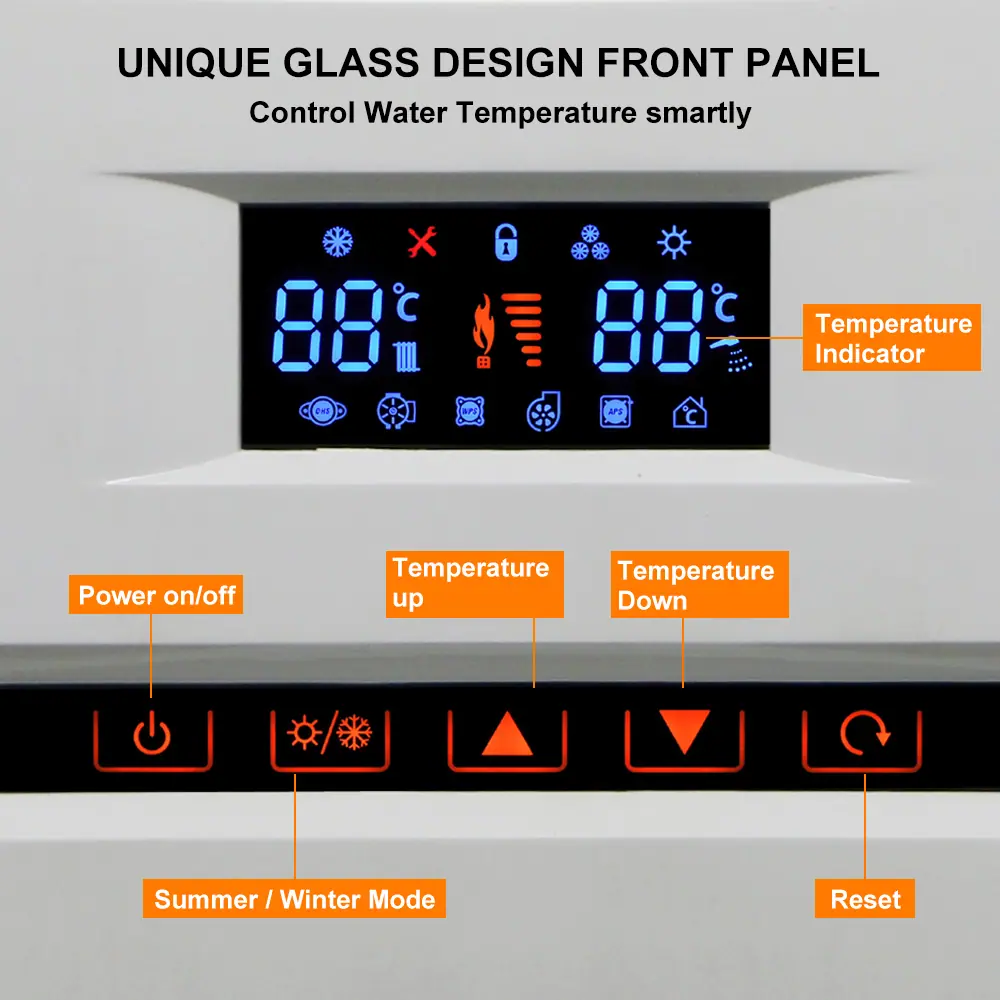

Large color touch display, intuitive interface and easy operation
Wi-Fi remote control and ECO mode, flexible and energy-saving heating management
IPX5D protection level, durable and suitable for various environments

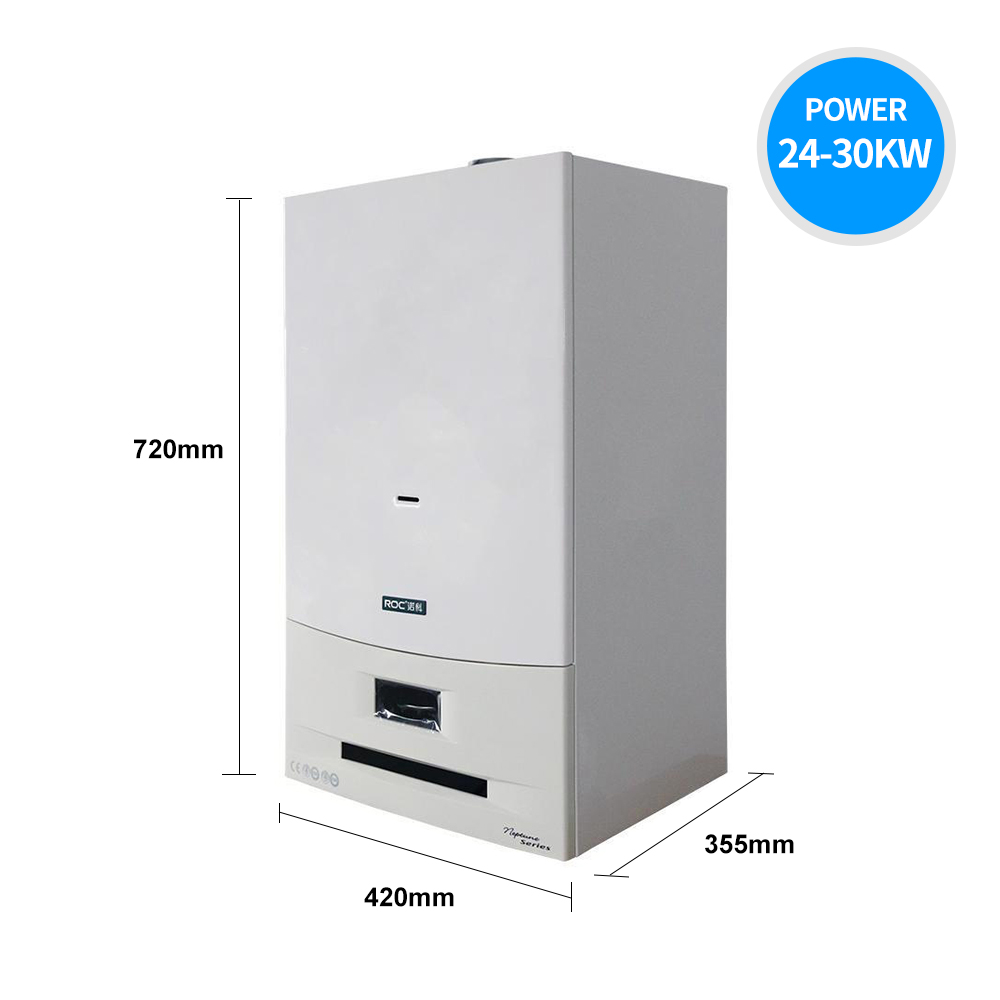

Product Dimensions

Parameter Technology

	Unit	LL1GBQ24-B26CN	LL1GBQ28-B30CN	LL1GBQ35-B37CN
Power
Max heating rated heat load	kW	24.4	28.4	35
Min heating rated heat load	kW	5	5.5	5.8
Heating rated condensing heat output (50°C/30°C)	kW	26	30	37
Max heating rated heat output (80°C/60°C)	kW	24	28	33.6
Min heating rated heat output (80°C/60°C)	kW	5	5.3	5.6
Heating rated condensing heat output (50°C/30°C)	kW	5	5.8	6.2
Domestic hot water rated heat load	kW	24.4	28.4	35
Efficiency
Energy efficiency rate		Class 1	Class 1	Class 1
Rated heat efficiency (80°C/60°C)	%	98	99	99
Rated heat efficiency (50°C/30°C)	%	107	107	107
Heat efficiency at 30% power	%	107	107	107
Technical data
Gas consumption of heating capacity (NG)	m3/h	2.6	3	3.7
Anti-freeze system start temperature	°C	5	5	5
Min hot water output capacity	kg/min	2.5	2.5	2.5
Max water pressure of heating system	MPa	0.3	0.3	0.3
Water pressure of domestic hot water	MPa	0.02-0.8	0.02-0.8	0.02-0.8
Expansion tank capacity	L	6.5	8	8
Preset pressure of expansion tank	MPa	0.1	0.1	0.1
Rated gas pressure (NG)	kPa	2	2	2
Gas pressure range (NG)	kPa	1.5-3.0	1.5-3.0	1.5-3.0
Performance
Heating temperature setting range	°C	30-80	30-80	30-80
Domestic hot water temperature setting range	°C	30-60	30-60	30-60
Hot water production capacity (△t=25K)	kg/min	13.4	15.6	19.2
Hot water production capacity (△t=30K)	kg/min	11.2	13.2	16
Circuit part
Rated power capacity	W	110/130	120/130	130/150
Electrical power supply voltage	–	220V~50Hz	220V~50Hz	220V~50Hz
Electric shock protection type	–	Class I	Class I	Class I
Degree Of Protection Against Humidity	–	IPX5D	IPX5D	IPX5D
NOx emission grade	–	Class 5	Class 5	Class 5
External dimensions	mm	(L)420X(W)345X(H)720	(L)420X(W)345X(H)720	(L)420X(W)400X(H)720
